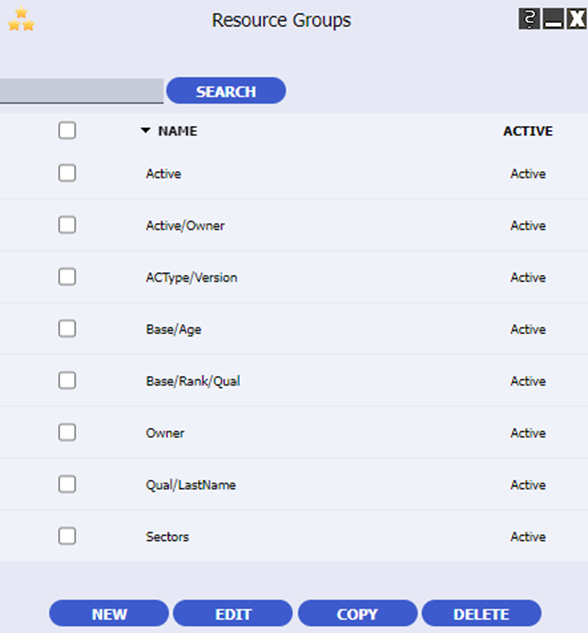

You can access the Resource Groups through this tab and/or icon:
Resource groups are used to sort groups in Roster Gantt.
To open Edit mode of Resource Group:
- Click the resource group in the list to begin.
- To Edit, click the box with resource group and click the EDIT button.
- To Copy, click the box with resource group and click the COPY button.
- To create New, click the New button to create a new resource group.

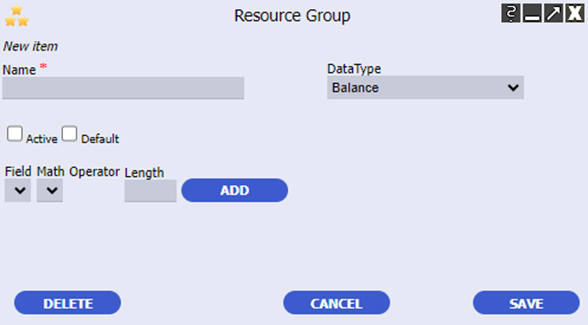

Creating a new Resource Group
To create a new Resource Group, do the following:
- Enter a Name in the respective field.
- Select the applicable DataType from the respective field.
- Check the Active checkbox if the Resource Group is to be used.
Field | Description |
Name | Give the Resource Group a name. Mandatory field. |

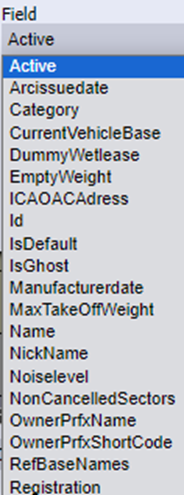

Field | These are fields you want to use as a grouping factor. |
| Math Operator | You can select the options of AND, NOT, and OR. |
| Length | It can be used to narrow a text string. Optional field. |

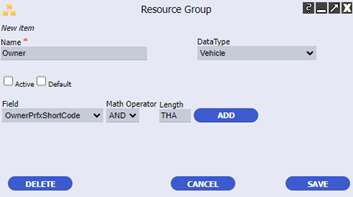

- Click the ADD button to save this configuration. Users can add several fields.
